Heater and Thermostat¶

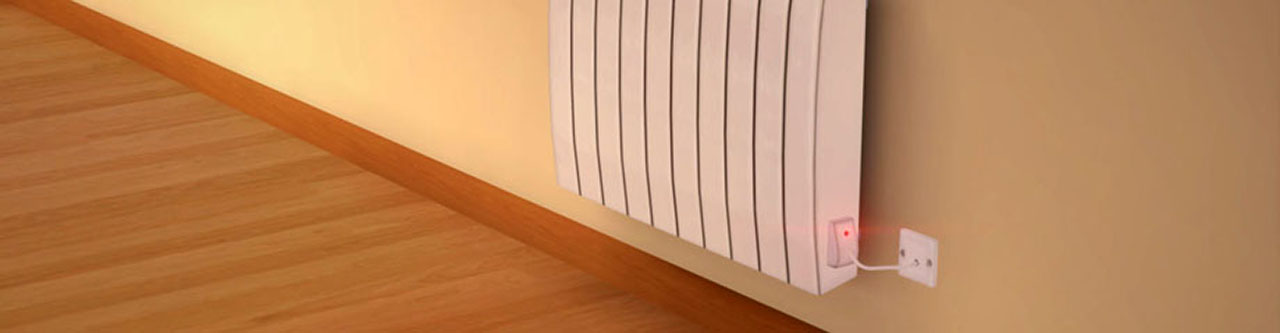

Heater¶
Electric heater controlled by thermostats. Includes a power LED which indicates if it is turned on or off.
** Power consumption: **
| Room | Description | Power (W) |
|---|---|---|
| A | Living room | 2000 |
| D | Kitchen | 1500 |
| E | Entrance hall | 1750 |
| G | Bedroom corridor | Heater 1: 750Heater 2: 750 |
| H | Children bedroom | 1000 |
| I | Bathroom | 750 |
| J | Single bedroom | 750 |
| K | Private bathroom | 1000 |
| L | Couple bedroom | 750 |
| M | Laundry room | 500 |
| N | Home office | 1500 |

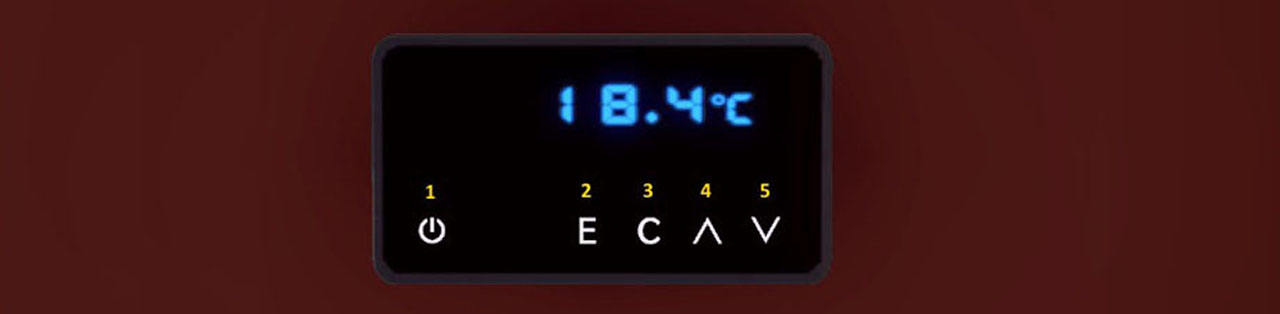

Thermostat¶
Used to control the room temperature. Includes two operating modes, Eco, and Comfort, which allow setting two different temperature setpoints. It is an on/off controller with a 1°C hysteresis.
| 1 | Turns on/off the thermostat. |
| 2 | Eco Mode. |
| 3 | Comfort Mode. |
| 4 | Increases the temperature setpoint. |
| 5 | Decreases the temperature setpoint. |
